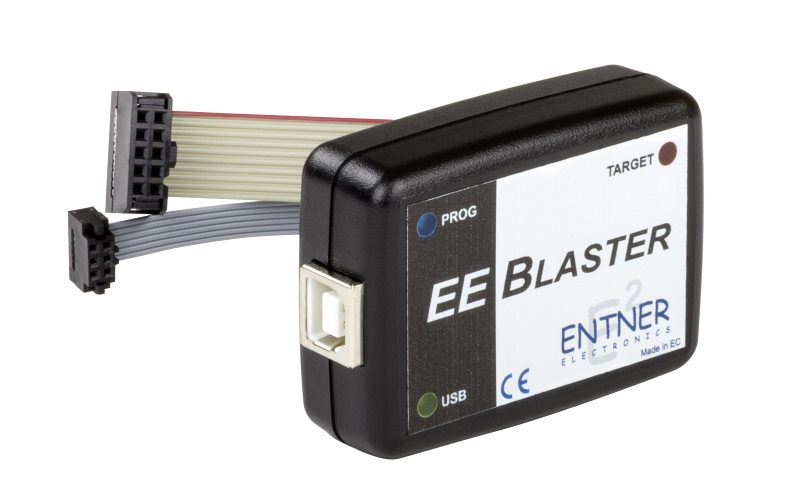

Low cost USB JTAG-progamming tool for ALTERA® FPGAs. Can be used as a replacement for the USB-Blaster. ORDER NOW




Main features

  • Supports programming of ALTERA®-FPGAs
  • Convenient indicator-LEDs for USB- and target-power
  • New small footprint 6pos. connector (2mm pitch, 24mm² area) and standard 10pos. connector (2.54mm pitch, 64.5mm² area)
  • Improved signal integrity
  • Fully compatible with ALTERA® tool-chain (Quartus II® and Nios II®-IDE), supports JTAG- and AS-mode
  • Also supports Vista and Windows 7 64bit versions
  • Mature 5V-devices (e.g. MAX7000®) not supported
  • Robust design, 2 years warranty

10pos. Connector Pinout (2.54mm pitch)

AS JTAG 10pos. JTAG AS
DCLK TCK 1 2 GND GND
CONF_DONE TDO 3 4 Vtarget Vtarget
nCONFIG TMS 5 6 unused nCE
DATAOUT unused 7 8 unused nCS
ASDI TDI 9 10 GND GND

(This is the pinout-recommendation from the FPGA-datasheets.)

Vtarget may be in the range from 1.2V to 3.6V.



6pos. Connector Pinout (2mm pitch)

JTAG 6pos. JTAG
TCK 1 2 GND
TDO 3 4 TDI
TMS 5 6 Vtarget

Vtarget may be in the range from 1.2V to 3.6V.

Pricing

1 pcs.: EUR 49,- (excl. VAT and shipping)



Shipment Costs: see in below order form



Order EEBlaster

Please add 2 and 7.


Payment Terms

European Companies: 8 days net

International Companies: payment in advance

Non-commercial (private): payment in advance



Our general terms and conditions do apply.
